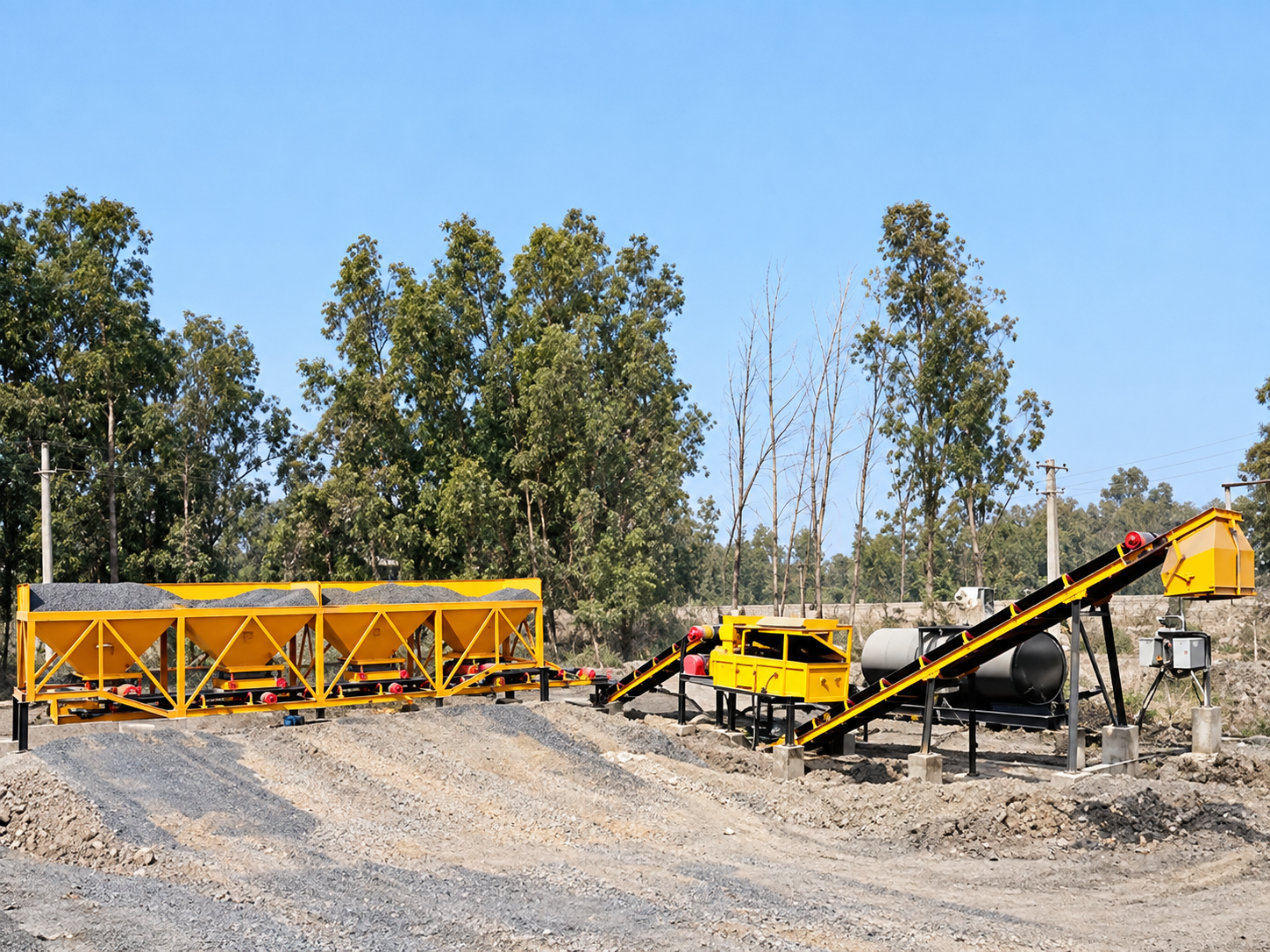

Components of wet mix plant : Our wet mix plant is one of the most proven machines. The WMM plant comes with host of features and quality components. The design is simple and control panel is very easy to use. Rugged mixing unit provides long life to the equipment. It is also possible to add cement into the mixing unit.
| DESCRIPTION | WMM – 100 (TPH) | WMM – 150 (TPH) | WMM – 200 (TPH) |
|---|---|---|---|
| AGGREGATE BIN FEEDER • No. of Bins/ storage capacity • Auxiliary Drive Motor DC/AC variable • Auxiliary Conveyor belt • Gathering Conveyor Belt • Bin Vibrator AC (1 No) • Total Connected Load in HP |
4 /52 tons 2 HP × 4 450 × 2.2 Mtr × 3 Ply 5 HP 600 × 24.5 Mtr × 3 ply 14 HP |
4 /52 tons 2 HP × 4 450 × 3 Mtr × 3 Ply 5 HP 600 × 24.5 Mtr × 3 ply 16.5 HP |
4 /68 tons 3 HP × 4 450 × 3 Mtr × 3 Ply 7.5 HP 600 × 24.5 Mtr × 3 Ply 20.5 HP |
|
OVER SIZE REMOVAL SCREEN • Drive Motor AC • Wire mesh |
2 HP 65 mm × 65 mm |
2 HP 65 mm × 65 mm |
2 HP 65 mm × 65 mm |
|
SLINGER CONVEYOR • Conveyor Drive Motor AC • Conveyor Belt |
5 HP 500 × 15 Mtr × 3 Ply |
5 HP 500 × 15 Mtr × 3 Ply |
7.5 HP 500 × 15 Mtr × 3 Ply |
|
PUGMILL UNIT • Main Drive Motor AC |
25 HP | 30 HP | 40 HP |
|
WATER TANK • Capacity • Mono Block Pump |
10,000 Ltr 2 HP |
10,000 Ltr 2 HP |
10,000 Ltr 3 HP |
| STORAGE HOPPER CAPACITY | 2 TON | 5 TON | 10 TON |
|
LOAD OUT CONVEYOR • Conveyor Drive Motor AC • Conveyor Belt |
5 HP 600 × 15 Mtr × 3 Ply |
5 HP 600 × 15 Mtr × 3 Ply |
7.5 HP 600 × 15 Mtr × 3 Ply |
| HYDRAULIC POWER PACK | 2 HP | 2 HP | 2 HP |
| CONTROL PANEL | Automatic | Automatic | Automatic |
