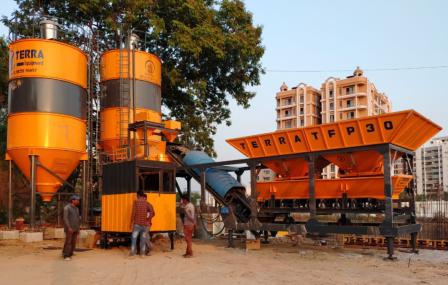

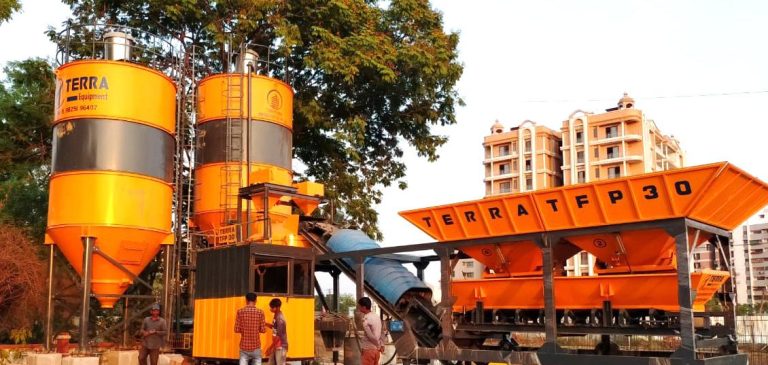

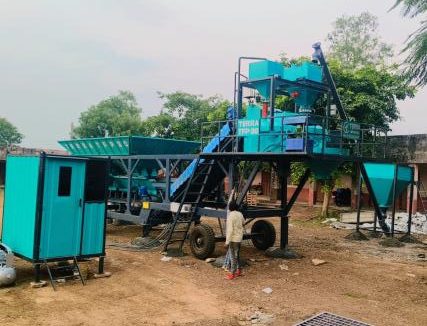

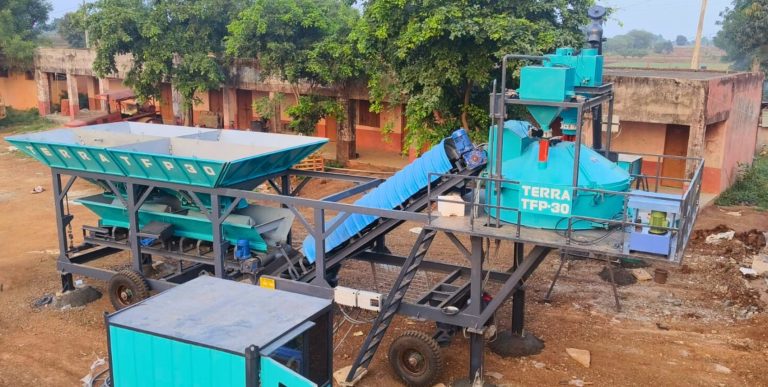

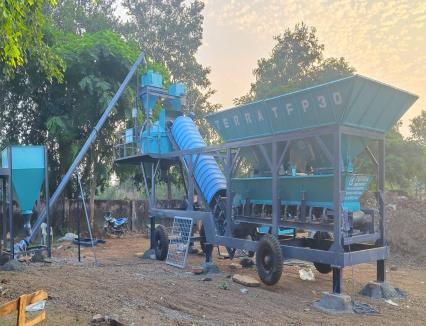

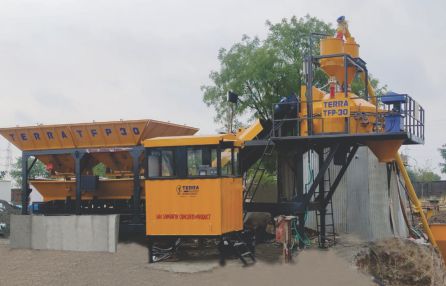

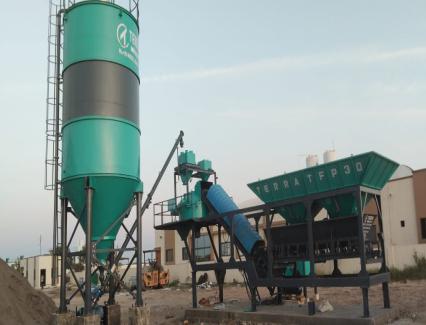

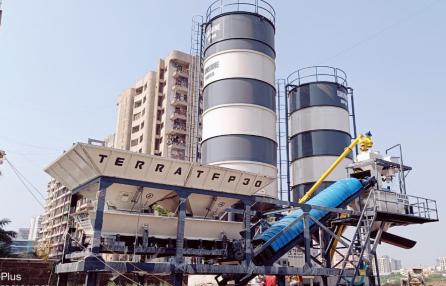

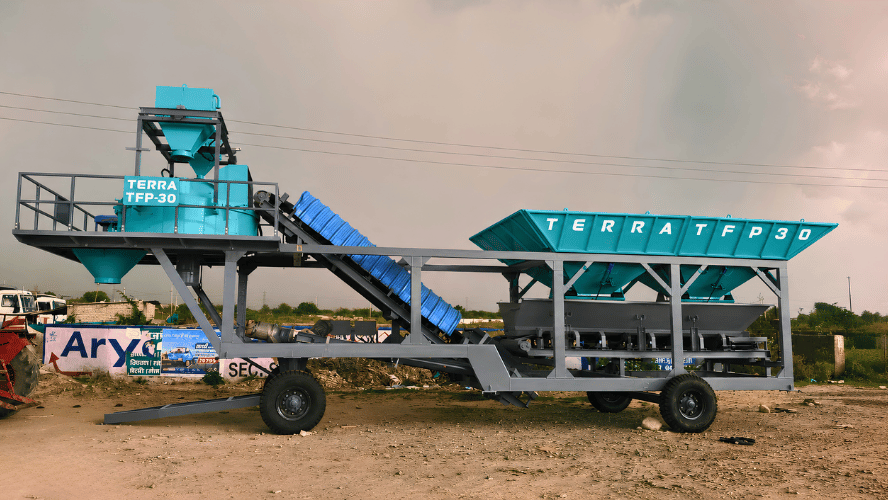

mobile concrete batching plant (tfp series)

OPTIONAL ACCESSORIES

Very compact design as the total length of the machine is 28 feet.
Best suitable for the congested project sites where space is a problem.
Fully automatic controlling system with touch screen user interface.
Separate weighing modules for Cement, water, additive and aggregates for higher accuracy.
Best suitable for the concrete pumping works.
Easily towable with the help of tractor as it comes with mobility arrangement and tow bar facility.
Runs of relatively very less electrical power compared to traditional mobile plants.
Easy to shift and erect at site, having simple operating system for hassle free work at site.

MODEL	TFP 20	TFP 25	TFP 30	TFP 45
OUTPUT CAPACITY	20 M³/Hr.	25 M³/Hr.	30 M³/Hr.	45 M³/Hr.
Plant Assembly	Whole plant assembly is on wheel mounted single chassis
MIXER TYPE	Pan type mixer/ Planetary mixer/ Twin Shaft mixer
MAIN MIXER DRIVE	20 HP	25 HP	30 HP	40 HP
MATERIAL STORAGE SYSTEM	2 x 2 Cross bin feeder
MATERIAL STORAGE CAPACITY	12 M³	12 M³	14 M³	20 M³
MATERIAL WEIGHING SYSTEM	Digital load cell based weighing of aggregates, cement, water and additive
Cement Feeding system	Though inclined screw conveyor
MOBILITY ARRANGEMENT	Provided along with tow bar facility
CONTROL PANEL	PLC based control panel with internal cabling
TOTAL CONNECTED POWER	45 HP	50 HP	58 HP	79 HP
SUGGESTED DG SET	50 KVA	62 KVA	82 KVA	100 KVA
CONCRETE DISCHARGE HEIGHT	2.1 Meter from the ground level
