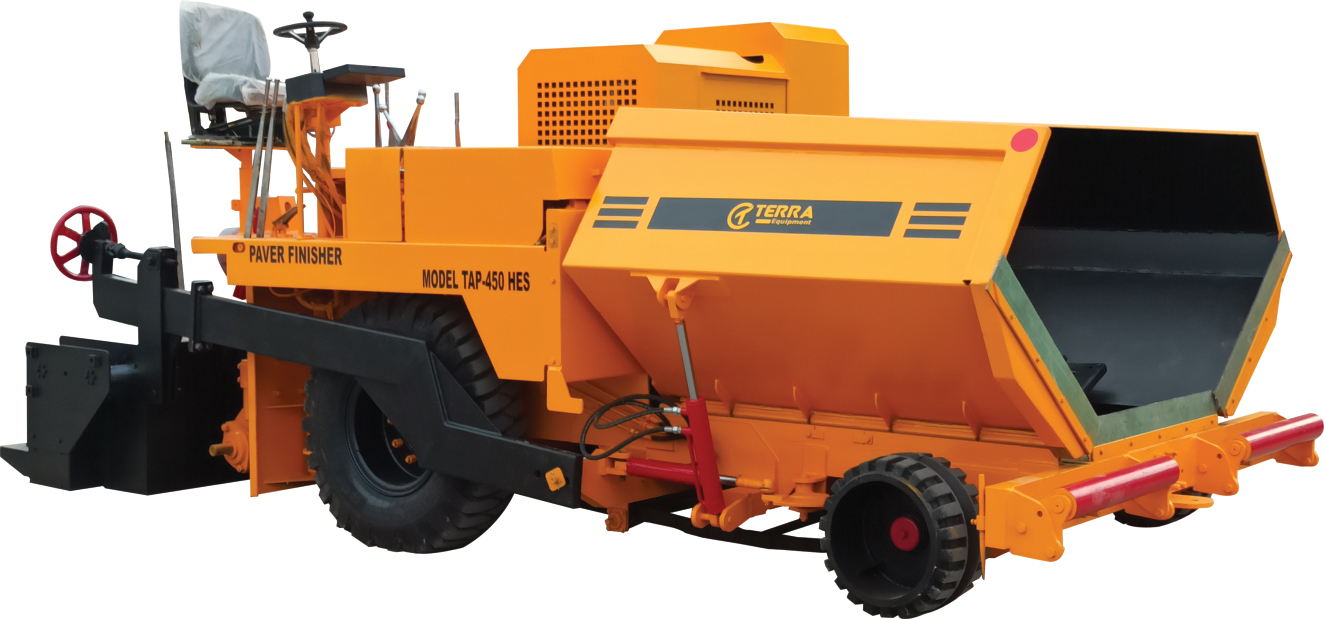

We have come up with a wide range of Asphalt Mechanical Paver Finisher or Single Lever Operated Mechanical Paver, required for paving the hot mix fabric on the built surface. As the hot mix material is dumped from the truck into the paver hopper, it is then conducted to the circulating screw by chain transporter. Further, the hot mix material is circulated equally along the paving width, with the help of left & right screw. Then, this hot mix material is paved to the desired present thickness using floating screed.
| Sr. No | Description | Hydropave – AP 450 |
|---|---|---|
| 1 | Engine Power | 76 HP @ 2000 RPM |
| 2 | Fuel Tank | 70 Ltr |
| 3 | Hydraulic Oil Tank | 100 Ltr |
| 4 | Battery | 12 Volts – 21 Plates (Heavy Duty) |
| 5 | Tyres | Front 2 Nos Solid Rear 2 Nos (Pneumatic) |
| 6 | Brakes | Disc Brakes |
| 7 | Steering | Power (Hydraulic) |
| 8 | Hopper Capacity | 4.25 MT |
| 9 | Main Transmission | Four Speed Gear Box Dry Plate Friction Clutch |
| 10 | Conveyor & Auger Drives | Mechanical Gear Box Dry Plate Friction Clutch |
| 11 | Conveyor Chain Augers | Asphalt: 45 Fiat Hardened Material |
| 12 | Vibratory Paving Screed | Hydraulic Extending Screed Basic – 2.5 Mtr Ext. up to 4.5 Mtr |
| 13 | Screed Heating | Gas / Air Manual Burner |
| 14 | Paving Thickness | 10 to 200 mm |
| 15 | Crown | –1 to +3 |
| 16 | Traveling Speed | 16 km/hr |
| 17 | Paving Capacity | 10 TPH |
| 18 | Weight | 10,200 kg |
| 19 | Operating Panel | Single Console |
| 20 | Optional | Telescopic Hydraulic Screed Basic: 2.5 Mtr Ext. up to 4.5 Mtr WMM Paving Chain 92 Flat |
