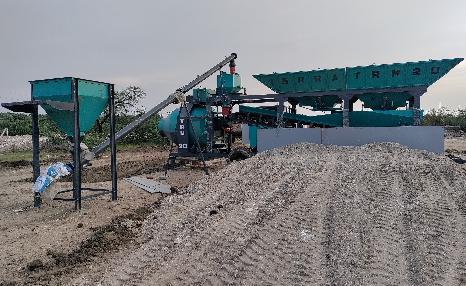

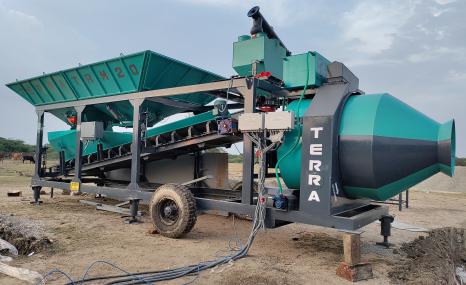

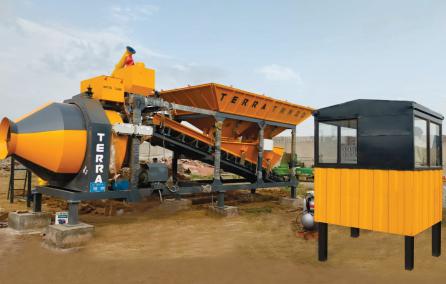

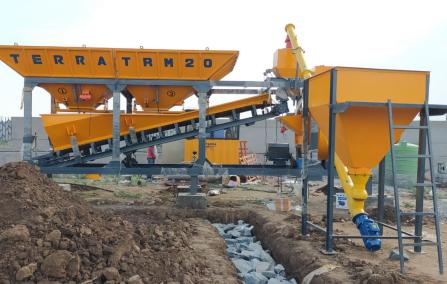

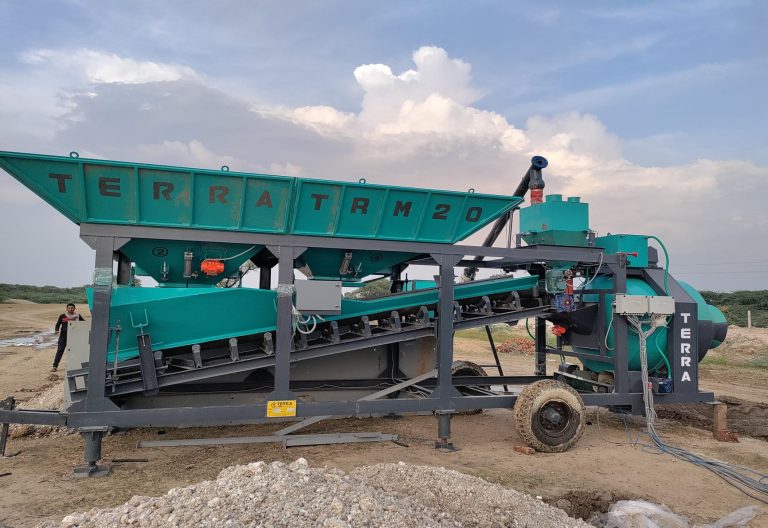

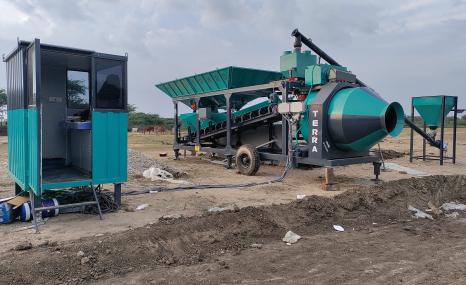

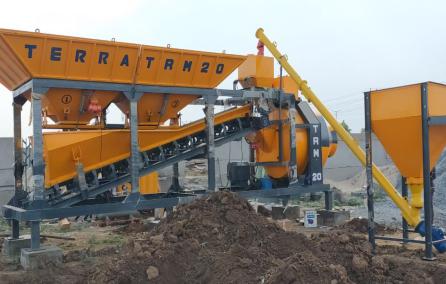

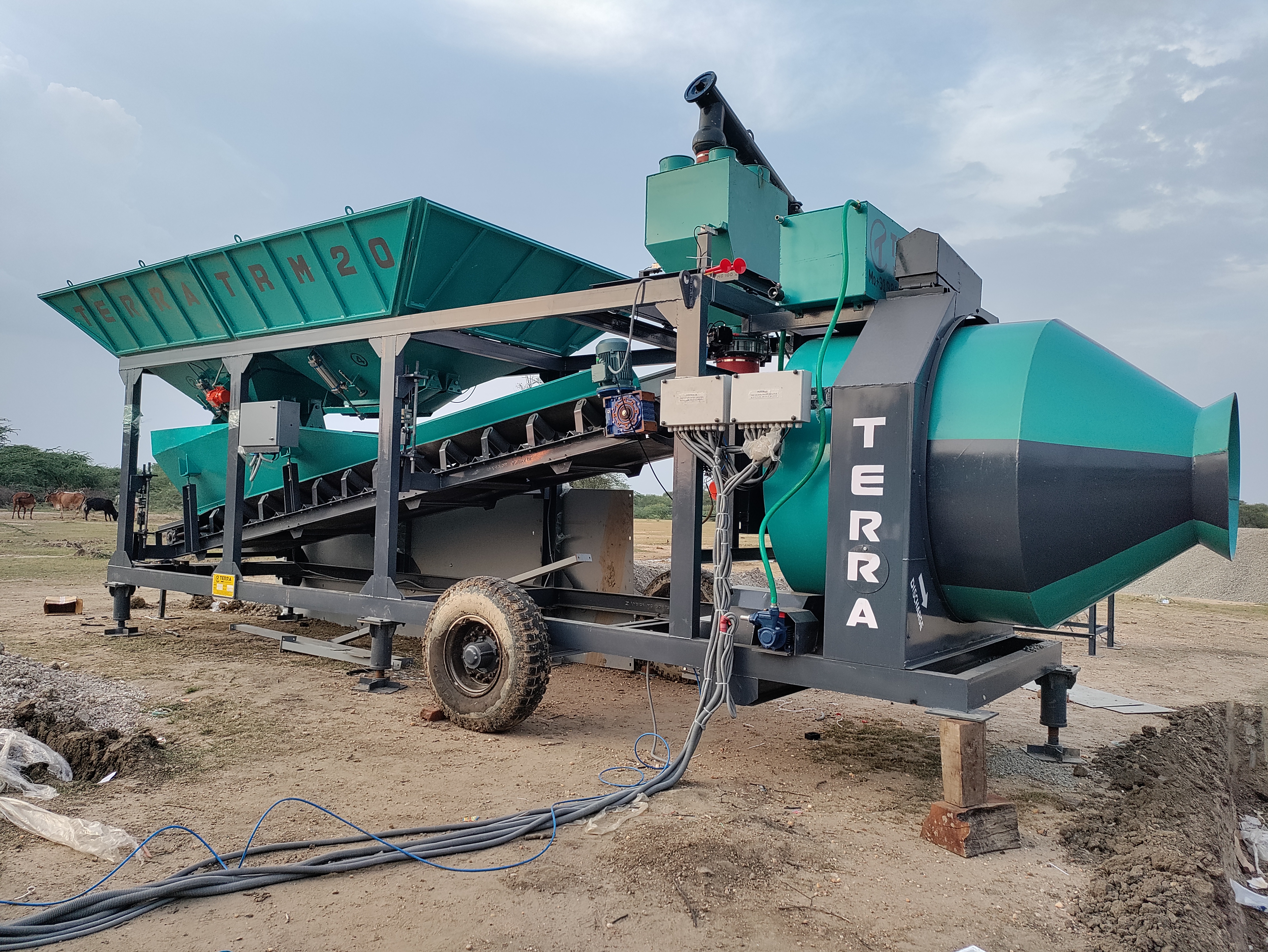

mobile concrete batching plant (trm series)

Another mobile type concrete batching plant series which comes with proven reversible drum type concrete mixer which is highly appreciated by the industry. Economic design and very cost effective than other mobile type concrete batching plants as it has very low operating cost and less connected power hence consumes less electricity.

OPTIONAL ACCESSORIES

Prefab cabin for control panel
Fly ash / GGBS feeding system
Storage silos
Scada software with computer

VIEW PDF

Salient Feature

Proven and tested reversible drum type mixing unit which is very easy to use and maintain at site.
Easy to move the machine as the plant comes with mobility and towing arrangement.
Digital load cell based weighing of cement and aggregate while water and additive is based on timer based accurate discharge system.
Fully automatic PLC based control panel having pen drive and printing facility.
Best suitable for CC roads, DAM, Bridges, commercial and residential projects.
2 x 2 cross bin feeder to store four different aggregates.
Hassle free operation.
24 x 7 after sales service support.

TECHNICAL SPECIFICATION

Model	TRM 15	TRM 20	TRM 30
Output capacity	15 M³/Hr.	20 M³/Hr.	30 M³/Hr.
Material storage capacity	10 M³	12 M³	14 M³
Mixing and Discharge system	Forward rotation of drum mixes the material and reverse rotation of drum discharges the concrete.
Material weighing system	Digital load cell based weighing of aggregates
Cement feeding system	Through inclined screw conveyor
Water feeding system	Timer based accurate water feeding system
Control panel	Fully automatic PLC based control panel
Pneumatic wheels	2 nos	2 nos	4 nos
Water tank capacity	200 litres	250 litres	300 litres
Total connected power	25 HP	30 HP	43 HP
Suggested DG Set	40 KVA	50 KVA	62 KVA
Concrete discharge height	1.2 meter from GL	1.5 meter from GL	1.7 meter from GL
