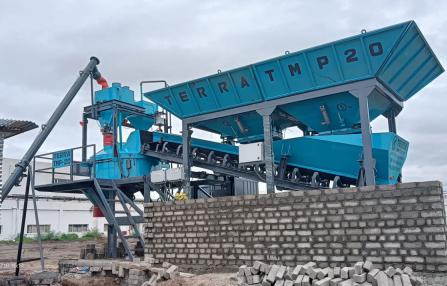

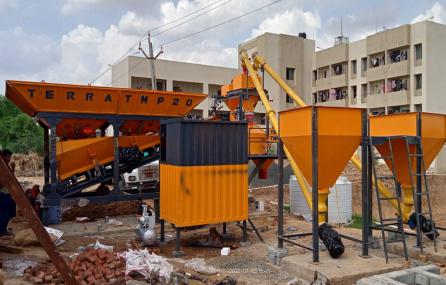

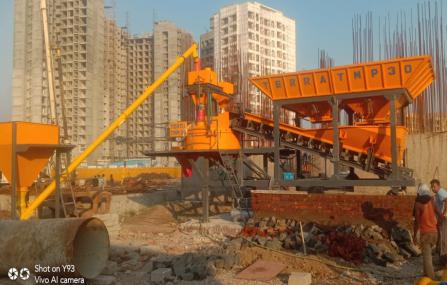

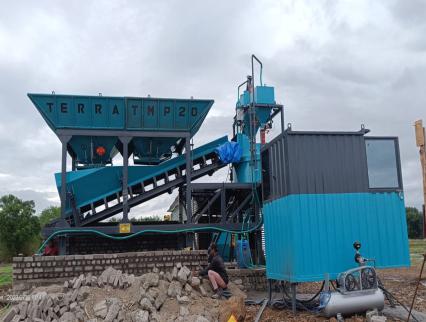

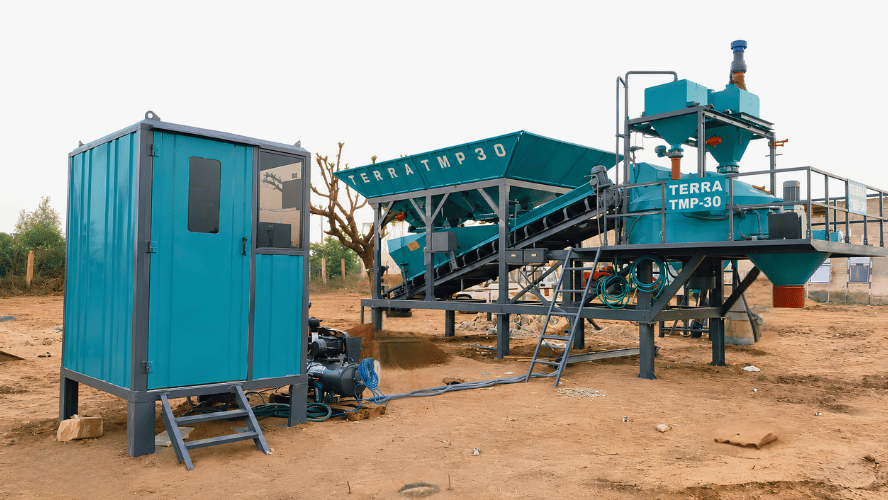

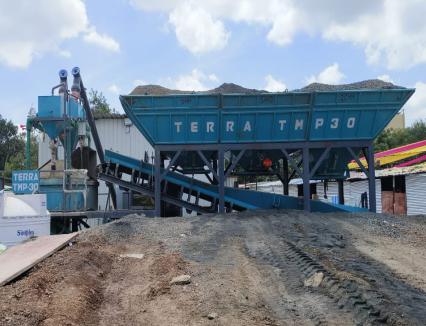

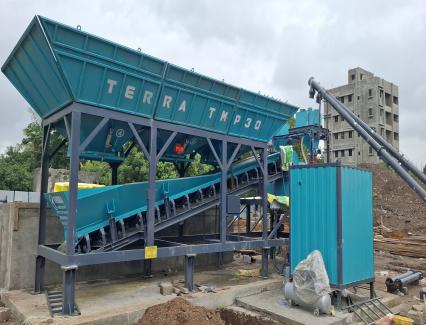

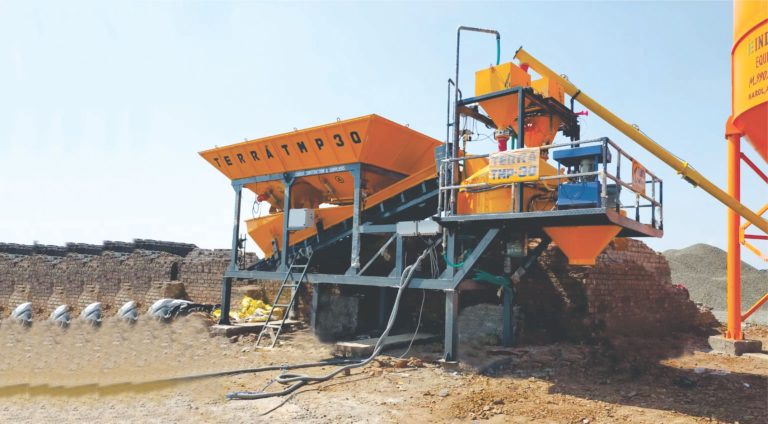

mobile concrete batching plant tmp series-2

OPTIONAL ACCESSORIES

Very compact design as the total length of the machine is 28 feet.
Best suitable for the congested project sites where space is a problem.
Fully automatic controlling system with touch screen user interface.
Separate weighing modules for Cement, water, additive and aggregates for higher accuracy.
Best suitable for the concrete pumping works.
Easily towable with the help of tractor as it comes with mobility arrangement and tow bar facility.
Runs of relatively very less electrical power compared to traditional mobile plants.
Easy to shift and erect at site, having simple operating system for hassle free work at site.

Model	TMP 15	TMP 18	TMP 24	TMP 30
Output capacity	15 M³/Hr.	18 M³/Hr.	24 M³/Hr.	30 M³/Hr.
Plant assembly	Whole plant assembly on single chassis
Mixer type	Turbo pan type mixer with spring backed arms
Material storage capacity	10 M³	10 M³	12 M³	12 M³
Material weighing system	Digital load cell based weighing of Aggregates, Cement, Water separately
Cement feeding system	Through inclined screw conveyor
Mobility arrangement	Provided along with tow bar facility
Total connected power	30 HP	35 HP	40 HP	45 HP
Suggested DG set	40 KVA	40 KVA	50 KVA	62 KVA
Concrete discharge height	1 meter from ground level
