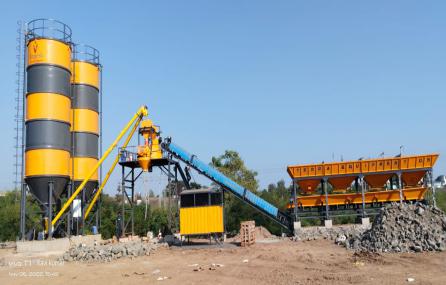

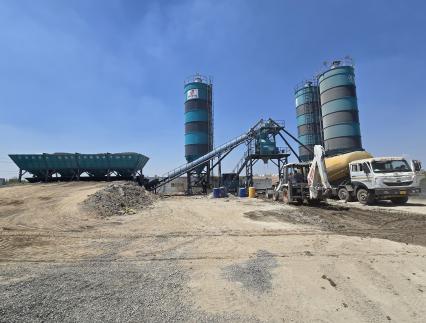

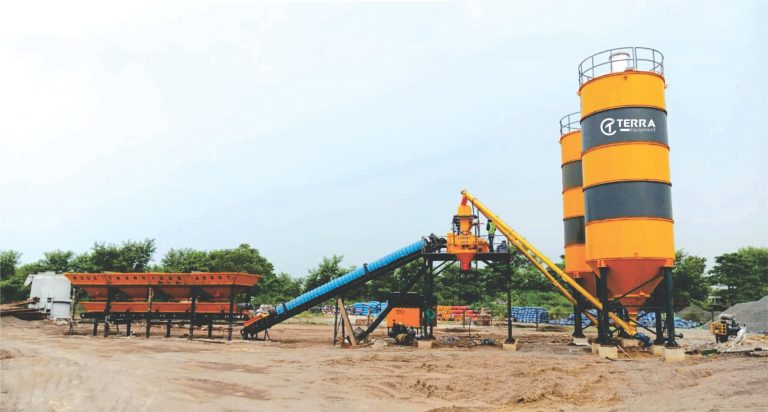

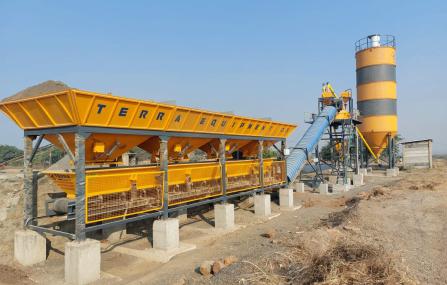

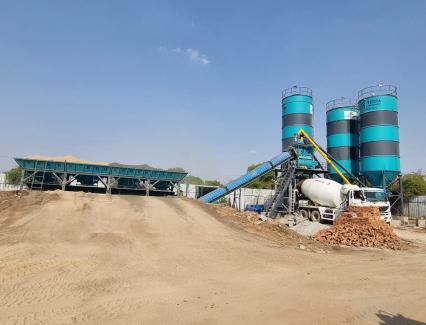

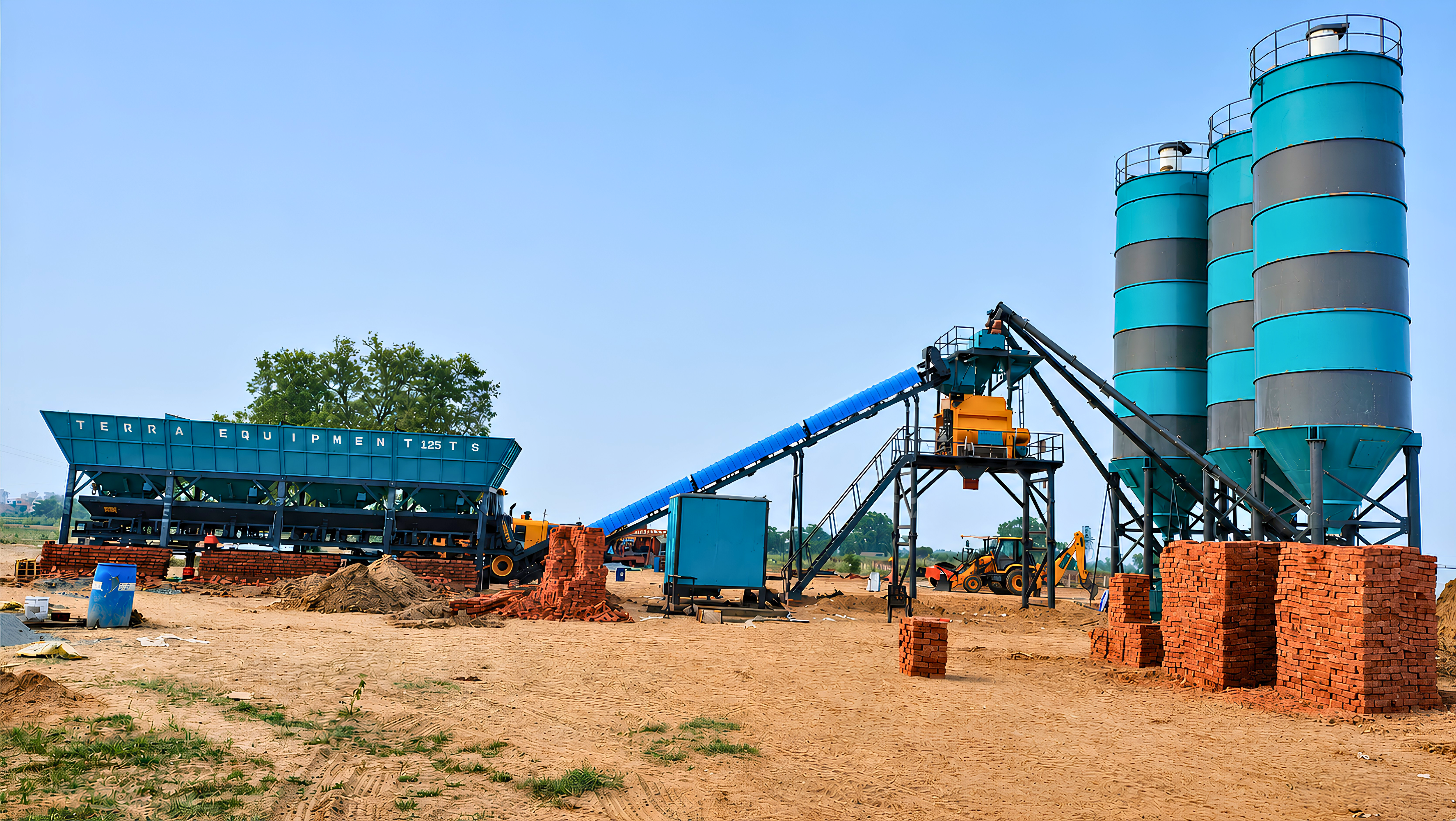

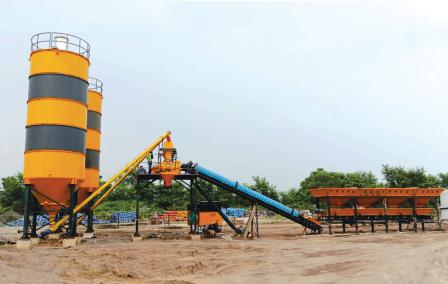

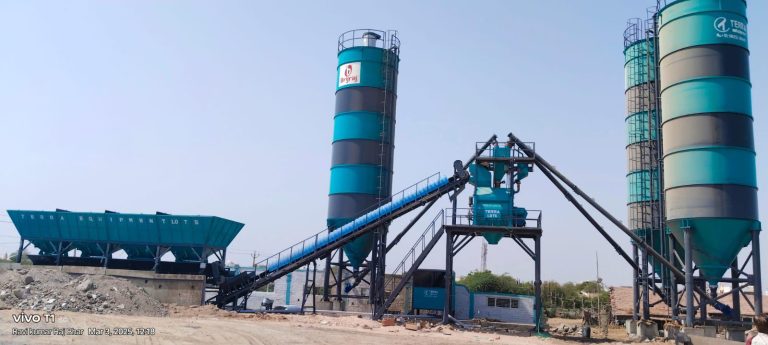

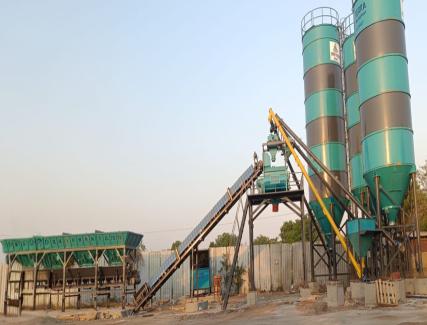

Terra make stationary type concrete batching plants are made to meet the requirement of market needs. With Unique mixer unit, and state of the art machine design, combined with latest PLC based control panel we have made the concrete work simple and hassle free. This new generation of batching plants are easy to operate and having least operation and maintenance cost.
| Model | TERRA 0.35 | TERRA 0.50 | TERRA 0.75 | TERRA 1.0 | TERRA 1.25 | TERRA 2.0 | TERRA 3.0 |
|---|---|---|---|---|---|---|---|
| Output Capacity | 20 M³/Hr | 30 M³/Hr | 45 M³/Hr | 60 M³/Hr | 75 M³/Hr | 90 M³/Hr | 120 M³/Hr |
| Mixer Unit | Turbo Pan Mixer / Twin Shaft Mixer | ||||||
| Main Mixer Reduction Gear Box | Imported Planetary Reduction Gear | ||||||
| Main Drive / Electrical Motor | 20 HP | 30 HP | 40 HP | 60 HP | 60 HP | 50 HP × 2 Nos | 75 HP × 2 Nos |
| Material Storage Unit | 2×2 Cross Bin | In-Line Four Bin Feeder | |||||
| Material Storage Capacity | 20 M³ | 30 M³ | 40 M³ | 60 M³ | 60 M³ | 90 M³ | 100 M³ |
| Material Weighing System | Digital Load Cell Based Weighing of Material | ||||||
| Batch Feeding System | Through Inclined Belt Conveyor / Inclined Skip Bucket | ||||||
| Cement Feeding System | Through Screw Conveyor | ||||||
| Water Weighing System | Digital Load Cell Based Weighing in Separate Tank | ||||||
| Admixture Dosing System | Digital Load Cell Based Auto Admixture Dosing System | ||||||
| Control Panel | Fully Automatic PLC Based Control Panel | ||||||
| Control Cabin | Provided | ||||||
| Concrete Discharge Height (G.I.) | 4.0 Meter from Ground Level | ||||||
| Total Connected Power (HP) | 52 HP | 74 HP | 87 HP | 120 HP | 145 HP | 200 HP | 275 HP |
| Suggested DG Set | 62 KVA | 82 KVA | 125 KVA | 160 KVA | 200 KVA | 300 KVA | 400 KVA |
