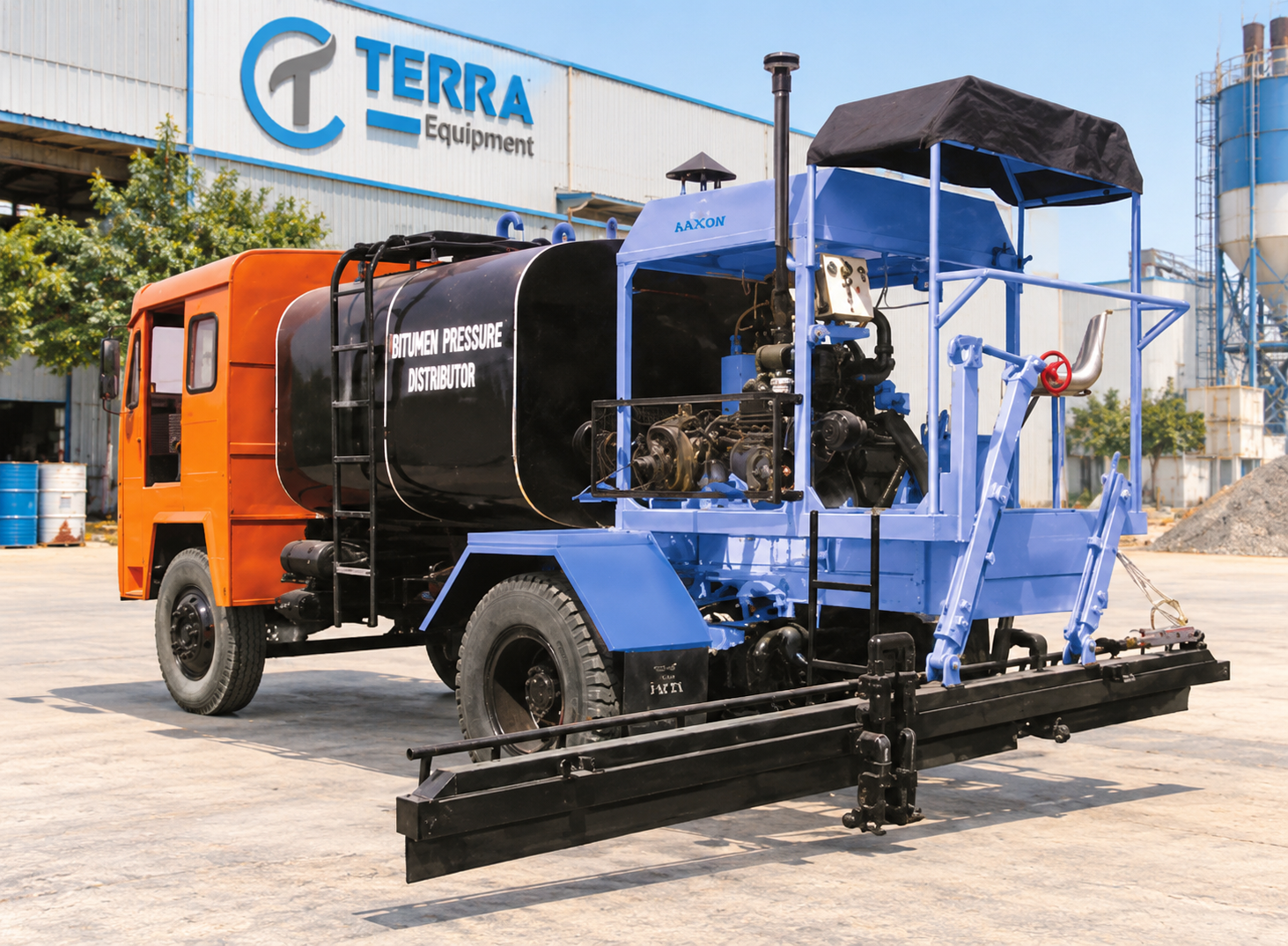

bitumen / emulsion pressure distributor

Models available TBPD : TBPD 3 Ton: 3000 liters, TBPD 4 TON: 4000 liters, TBPD 6 TON: 6000 liters, TBPD 7 TON: 7000 liters

BITUMEN PUMP : 2” x 2”, 350 lpm, positive displacement gear pump.
AIR COMPRESSOR : Twin cylinder, 3 hp, 360 lpm capacity with working pressure of 9 kg/cm.
DRIVING UNIT : Powered by a 18.5 KW ( 25 HP) Air cooled diesel engine.
BITUMEN SPRAYING PRESSURER : 0 - 6 kg/cm, pressurized bitumen spraying.
TEMPERATURE INDICATORS :
- 0 – 300 C analog scale located on the tank.
- Digital temperature indicator on remote box.
SPRAY BAR :
- Standard width: 2.4 m.
- Adjustable Extension bar for spraying width up to 4.2 m.
- Nozzle Distance 225mm Nozzle c/c.
- Pneumatically Operated Spray bar Nozzles.

STANDARD FEATURES

DESCRIPTION	TBPD 3 Ton	TBPD 4 Ton	TBPD 6 Ton
Length – L	2400 mm	2400 mm	3000 mm
Width – W	1800 mm	1800 mm	1860 mm
Height – H	1500 mm	1500 mm	1810 mm
Capacity	3000 liters	4000 liters	6000 liters
Manhole	600 mm	600 mm	600 mm – 1 nos.
Insulation	50 mm	50 mm	50 mm
Shape	Rectangular Oval Shape	Rectangular Oval Shape	Rectangular Oval Shape
Burner	Compressed air type	Compressed air type	Compressed air type
Burner Fuel Tank	60 liters	60 liters	60 liters
Engine Fuel Tank	30 liters	30 liters	30 liters
Recommended Chassis	3760 mm – Wheel – base	3760 mm – Wheel – base	4470 mm – Wheel – base
Clear Chassis Length – CL	4550 mm	4850 mm	5450 mm
