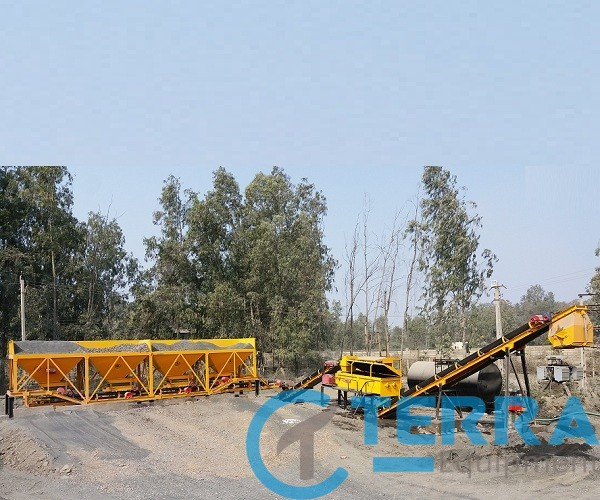

Wet Mix Macadam Plant

Wet Mix Macadam Plant

Models available of WET MIX MACADAM (W.M.M.) Plant WMM – 100 (TPH) WMM – 150 (TPH) WMM – 200 (TPH) WMM – 250 (TPH)

Components of wet mix plant : Our wet mix plant is one of the most proven machines. The WMM plant comes with host of features and quality components. The design is simple and control panel is very easy to use. Rugged mixing unit provides long life to the equipment. It is also possible to add cement into the mixing unit.

The standard components are as:

  • Cold feeder bins
  • Charging conveyor
  • Mixing unit.
  • Water tank
  • Cement silo and screw conveyor (optional)
  • Load out conveyor
  • Storage hopper or storage silo
  • Control panel

Advantages of our mixer of wet mix plant are as below: :

  • We have provided pug mill unit with 6 shafts for better torque absorption and maintenance free performance.
  • Each shaft is bigger with a 5 inches thickness for long life.
  • The shafts are not slotted. Arms and tips are fitted with distance piece in between. This ensures that the shaft thickness is maintained.
  • The arms and tips are alternately fitted for homogenous mixing unlike alternate as supplied by other manufacturers.
  • Fast replaceable liners, arms and tips.

    DESCRIPTION

    WMM – 100 (TPH)

    WMM – 150 (TPH)

    WMM – 200 (TPH)

    AGGREGATE BIN FEEDER

    • No. of Bins/ storage capacity
    • Auxiliary Drive Motor DC/AC variable
    • Auxiliary Conveyor belt
    • Gathering Conveyor Belt
    • Bin Vibrator AC (1 No)
    • Total Connected Load in HP



    4 /52 tons
    2 HP x 4
    450 x 2.2 Mtr. X 3 Ply
    5 HP
    600 x 24.5 Mtr x 3 ply
    14 HP



    4 /52 tons
    2 HP x 4
    450 x 3 Mtr. X 3 Ply
    5 HP
    600x 24.5 Mtr 3 ply
    16.5 HP



    4 /68 tons
    3 HP x 4
    450 x 3 Mtr. X 3 Ply
    7.5 HP
    600x 24.5 Mtr 3 ply
    20.5 HP

    OVER SIZE REMOVAL SCREEN

    • Drive Motor AC
    • Wire mesh



    2 HP
    65 mm x 65 mm



    2 HP
    65 mm x 65 mm



    2 HP
    65 mm x 65 mm

    SLINGER CONVEYOR

    • Conveyor Drive Motor AC
    • Conveyor Belt



    5 HP
    500 x 15Mtr x 3 Ply



    5 HP
    500 x 15Mtr x 3 Ply



    7.5 HP
    500 x 15Mtr x 3 Ply

    PUGMIL UNIT

    • Main Drive Motor AC



    25HP



    30HP



    40HP

    WATER TANK

    • Capacity
    • Mono Block Pump



    10,000 Ltr.
    2 HP



    10,000 Ltr.
    2 HP



    10,000 Ltr.
    3 HP

    STORAGE HOPPER CAPACITY

    2 TON

    5 TON

    10 TON

    LOAD OUT CONVEYOR

    • Conveyor Drive Motor AC
    • Conveyor Belt





    5 HP
    600 x 15 mtr x 3 Ply





    5 HP
    600 x 15 mtr x 3 Ply





    7.5 HP
    600 x 15 mtr x 3 Ply

    HYDRAULIC POWER PACK

    2 HP

    2 HP

    2 HP

    CONTROL PANEL

    Automatic

    Automatic

    Automatic
