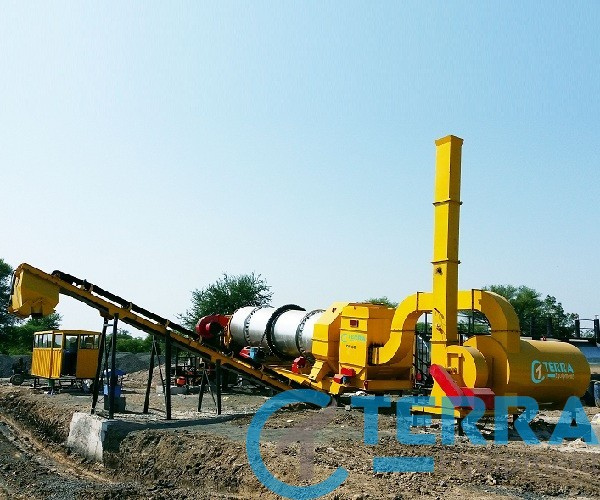

Asphalt drum mix plants

Asphalt drum mix plants

Models available in Drum mix plant : DM 35: Cap30 – 40 TPH / DM 45: Cap40 – 60 TPH / DM 50: Cap60 – 90 TPH / DM 60: Cap90 – 120 TPH

COLD FEED HOPPERS: Four Aggregate Bins, Individual variable drives under each bin with precision gates, No Flow Indicator Device, One bin Vibrator Motor, Highly Accurate Conveying System.
SLINGER CONVEYOR: Transfer the aggregates to the Drying and Mixing Unit.
CONTINUOUS ELECTRONIC WEIGHING SYSTEM : The State-of-the-Art Software System Processes and meters the mix proportioning. The feedback from the load cell is processed by PLC, which further automatically controls and processes the bitumen and filler proportioning.
DRYING AND MIXING UNIT : Aggregates are heated and mixed with asphalt binder and filler contents in the Drying & Mixing Unit. The Inherent Primary Multi-Cyclone Dust Collection unit is capable to collect dust from the drum unit. The unit includes Pressure Jet oil Burner with Blower.
LOAD OUT CONVEYOR WITH G.O.B HOPPER : The Mix Materials is discharged by the plant into the Load Out Conveyor equipped with Hydraulically operated clamshell gate to allow truck changing without spillage.
BITUMEN STORAGE TANK : Skid mounted high capacity hot oil jacketed gear type pump, controlled by an AC / DC variable speed drive feeds the amount of the Thermo drum unit. The fully automatic SCADA / PLC control ensures a precise metering of bitumen.
FILLER STORAGE UNIT : 1.5 tons of filler storage and feeding solutions for the customers to choose from, depending on the site requirements. A variable speed computerized synchronized metering system ensures the right proportioning in the mix.

STANDARD FEATURES

  • Modern Drum mix Technology
  • Produces High Quality Homogeneous Mixing
  • Stationery or Mobile.
  • High Production Rate
  • Quality Oil Burners
  • Highly Accurate Aggregate Feeders
  • Low Dust Emissions
  • Plant Mounted Discharge Conveyor with Surge Hopper
  • Automatic Computerized Control System

AUTOMATIC PRESSURE JET OIL BURNER

  • Higher Fuel efficiency
  • Various Fuel Options
  • Electric Spark Ignition
  • Dynamically balanced blower
  • Automatic damper control for
  • Regulating sufficient flow of Air
  • Electronic photocell based flame
  • Monitoring Device.

    COMPUTERIZED CONTROL PANEL

    WE GIVE COMPUTERIZED CONTROL PANEL WITH BELOW FEATURES:

    • Display of All Process Control Parameters
    • A.C. / D.C Variable Drives
    • Actual Percentage, Kg / Min, Temperature
    • Status of all Electric Motors on MIMIC
    • Controlling of Burners
    • Provision to Print, Store and Edit Production
    • Details Mix Proportions Etc
      Request Quote
      View PDF

      DESCRIPTION

      DM-35( 30-45TPH )

      DM-45 (40-60 TPH)

      DM-50 (60-90 TPH)

      DM-60 (90-120TPH)

      AGGREGATE BIN FEEDER

      • No. of Bins/ storage capacity
      • Auxiliary Drive Motor DC/AC variable
      • Gathering Conveyor Belt
      • Gathering drive motor AC
      • Auxiliary Conveyor belt
      • Bin Vibrator AC (1 No)
      • Total Connected Load in HP



      4 Bin : 31 tons
      2HPX4
      500×2.2 Mtr.X 3 Ply
      5 HP
      500x 24.5 Mtr.x 3 ply
      1 HP
      14 HP



      4 Bin : 31 tons
      2HPX4
      500 x 3 Mtr. X 3 Ply
      5 HP
      600x 24.5 Mtr.x 3 ply
      1 HP
      14 HP



      4 Bin : 40 tons
      2HPX4
      500 x 3 Mtr. X 3 Ply
      5 HP
      600x 24.5 Mtr.x 3 ply
      1 HP
      14 HP



      4 Bin : 56 tons
      3HPX4
      500 x 3 Mtr. X 3 Ply
      5 HP
      600x 24.5 Mtr.x 3 ply
      1 HP
      18 HP

      OVER SIZE REMOVAL SCREEN

      • Drive Motor AC
      • Wire mesh



      2 HP
      65 mm x 65 mm



      2 HP
      65 mm x 65 mm



      2 HP
      65 mm x 65 mm



      2 HP
      65 mm x 65 mm

      SLINGER CONVEYOR

      • Conveyor Drive Motor AC
      • Conveyor Belt



      5 HP
      500 x 15Mtr x 3 Ply



      5 HP
      500 x 15Mtr x 3 Ply



      5 HP
      500 x 15Mtr x 3 Ply



      5 HP
      500 x 15Mtr x 3 Ply

      THERMO DRUM UNIT

      • Dryer Drive Motor AC
      • Main Burner Connected Power AC
      • Exhauster
      • Exhaust Drive Motor AC



      15 HP
      7HP
      CFM 5OOO
      10HP



      20HP
      7HP
      CFM 105OO
      20HP



      25HP
      10.5HP
      CFM 145OO
      25HP



      40HP
      15HP
      CFM 175OO
      30HP

      MULTI CONE DUST COLLECTOR

      • No of cones
      • Dust Screw Drive Motor



      5 Nos.
      1.5 HP



      15 Nos.
      1.5 HP



      20 Nos.
      1.5 HP



      24 Nos.
      1.5 HP

      FUEL TANK

      • Capacity



      1000 ltr.



      2000 ltr.



      3000 ltr.



      5000 ltr.

      G.O.B HOPPER CAPACITY

      1 TON

      1 TON

      1 TON

      1 TON

      LOAD OUT CONVEYOR BELT ( H.R )

      • Hydraulic Power Pack
      • Load out Conveyor AC Motor



      500 x 15 mtr x 3 ply
      2 HP
      5 HP



      500 x 16 mtr x 3 ply
      2 HP
      5 HP



      600 x 17.9 mrt x 3 ply
      2 HP
      5 HP



      600 x 17.9 mrt x 3 ply
      3 HP
      7.5 HP

      BITUMEN TANK

      • CAPACITY & SHAPE
      • BITUMEN DRIVE MOTOR DC/AC
      • BITUMEN PUMP JACKETED
      • HOT OIL DRIVE MOTOR AC



      15 Tons ( O SHAPE )
      5 HP
      50.8mm x 50.8mm
      19.05 MM X 19.05 MM



      15 Tons ( O SHAPE )
      5 HP
      50.8mm x 50.8mm
      19.05 MM X 19.05 MM



      20 Tons ( O SHAPE)
      5 HP
      50.8mm x 50.8mm
      19.05 MM x 19.05 MM



      20 Tons ( O SHAPE )
      5 HP
      50.8mm x 50.8mm
      19.05 MM x 19.05 MM

      MINERAL FILLER UNIT

      • Drive Motor DC / AC
      • Rotary Valve
      • Capacity
      • Twin Lube Air Compressor AC



      2 HP
      100 mm
      1.5 CM
      5 HP



      2 HP
      150 mm
      1.5 CM
      7.5 HP



      2 HP
      150 mm
      1.5 CM
      7.5 HP



      2 HP
      150 mm
      1.5 CM
      7.5 HP

      TOTAL CONNECTED LOAD AC/DC

      64.5 HP

      92 HP

      105.5 HP

      137.5 HP

      OPEN LAND REQUIREMENT

      25 MTR. X 25 MTR

      35 MTR X 35 MTR

      37.5 MTR X 37.5 MTR

      40 MTR x 40 MTR
