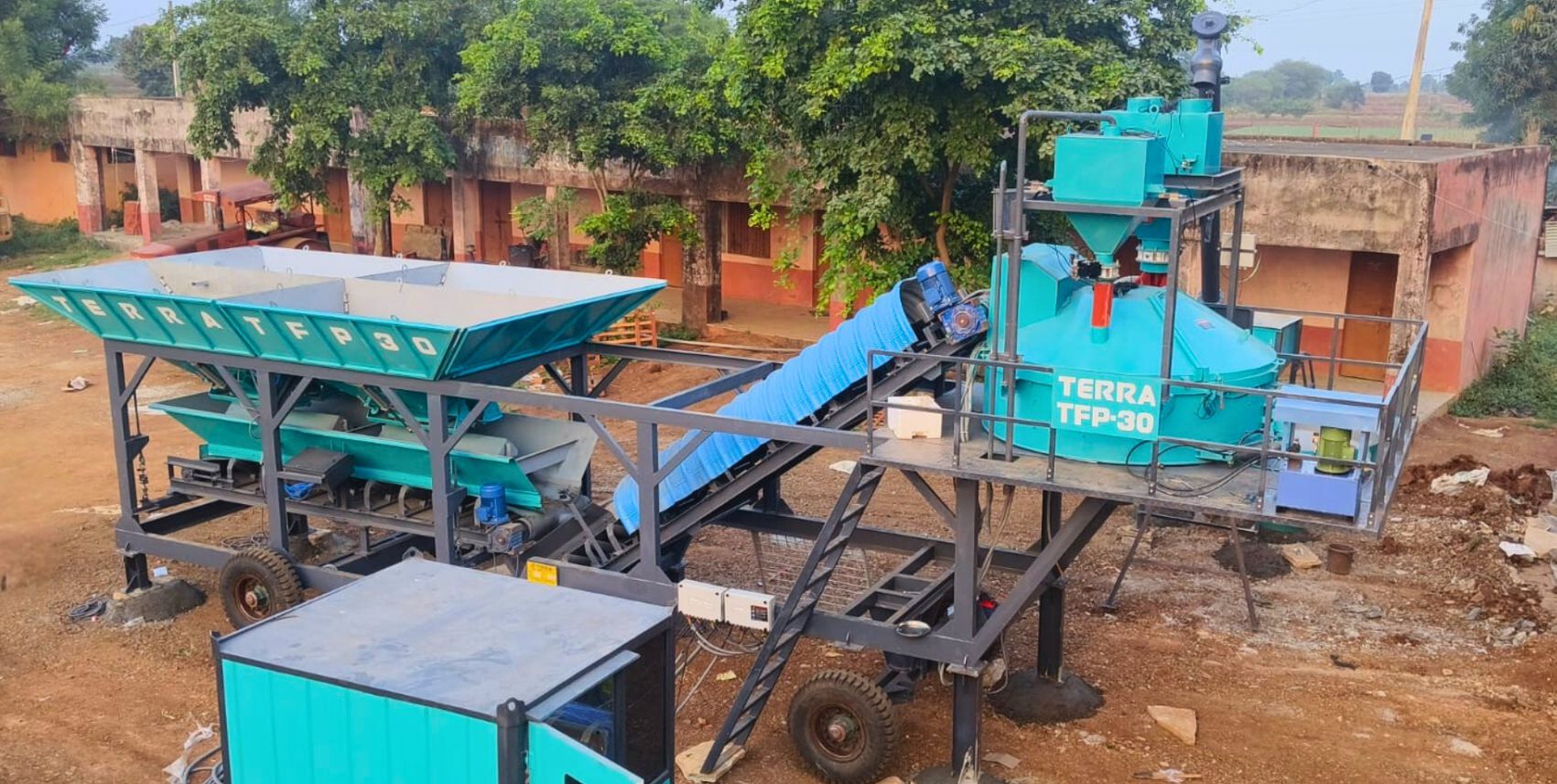

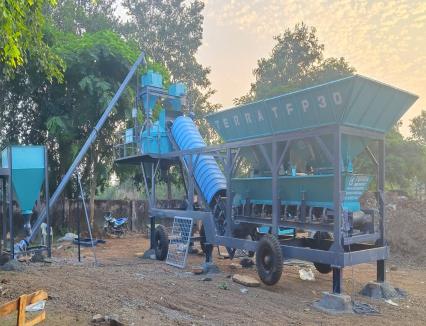

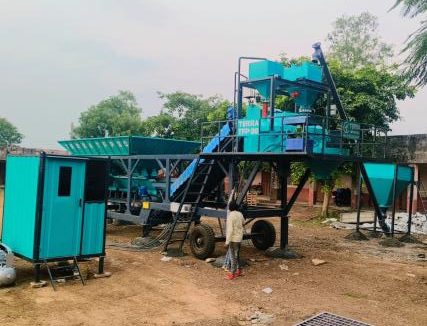

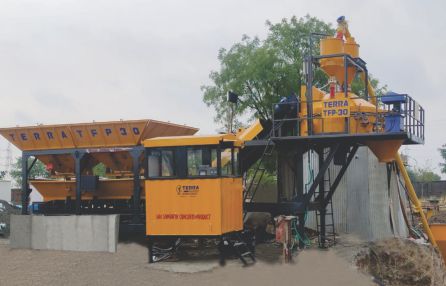

Mobile Concrete Batching plant (TMP Series)
Mobile Concrete Batching plant (TMP Series)
OPTIONAL ACCESSORIES
- Scada software with computer
- Fly ash / GGBS feeding system

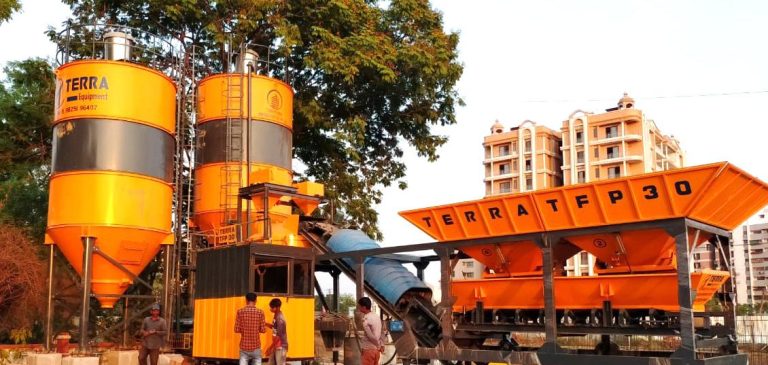

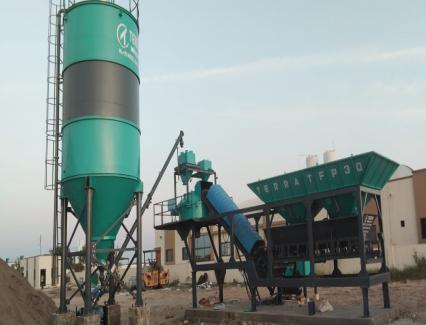

- Storage silos
- Prefab cabin for control panel
Salient Feature
- Very compact design as the total length of the machine is 28 feet.
- Best suitable for the congested project sites where space is a problem.
- Fully automatic controlling system with touch screen user interface.
- Separate weighing modules for Cement, water, additive and aggregates for higher accuracy.
- Best suitable for the concrete pumping works.
- Easily towable with the help of tractor as it comes with mobility arrangement and tow bar facility.
- Runs of relatively very less electrical power compared to traditional mobile plants.
- Easy to shift and erect at site, having simple operating system for hassle free work at site.
TECHNICAL SPECIFICATION
Model | TMP 15 | TMP 18 | TMP 24 | TMP 30 |
---|---|---|---|---|
Output capacity | 15 M3/Hr. | 18 M3/Hr. | 24 M3/Hr. | 30 M3/Hr. |
Plant assembly | Whole plant assembly on single chassis | |||
Mixer type | Turbo pan type mixer with spring backed arms | |||
Material storage capacity | 10 M3 | 10M3 | 12 M3 | 12 M3 |
Material weighing system | Digital load cell based weighing of Aggregates ,cement ,water separately | |||
Cement feeding system | Through inclined screw conveyor | |||
Mobility Arrangement | Provided along with tow bar facility | |||
Total connected power | 30 HP | 35 HP | 40 HP | 45 HP |
Suggested D.G. set | 40 KVA | 40 KVA | 50 KVA | 62 KVA |
Concrete discharge height | 1 meter from Ground level |
